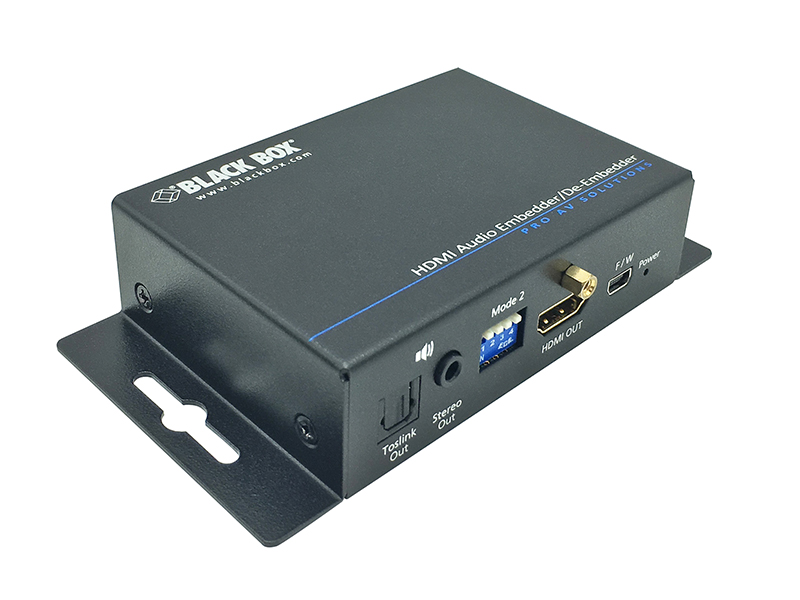

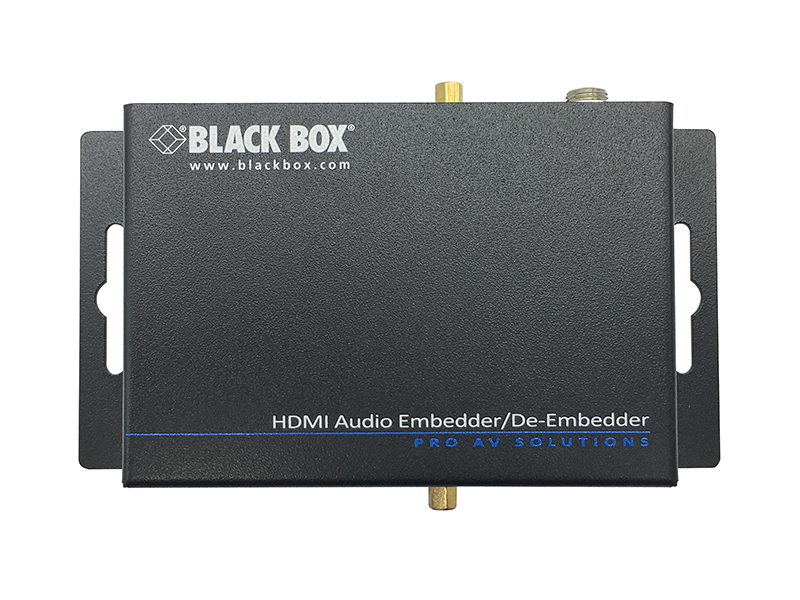

BLACKBOX AEMEX-HDMI-R2 Audio Embedder & De-embedder - HDMI 2.0  | BLACKBOX AEMEX-HDMI-R2 Audio Embedder & De-embedder - HDMI 2.0 Audio Embedder & De-embedder - HDMI 2.0 |  Εκτύπωση
164,67 € 204,19 € με 24% ΦΠΑ Αγορά Κατόπιν παραγγελίας |
|
BLACKBOX AEMEX-HDMI-R2 Audio Embedder & De-embedder - HDMI 2.0 Information
Audio Embedder/De-embedder - HDMI 2.0
- Supports HDMI, 3.5-mm analog audio, and TOSLINK optical audio inputs and outputs.
- Supports resolutions of up to 4K at 60 Hz in 4:4:4 color.

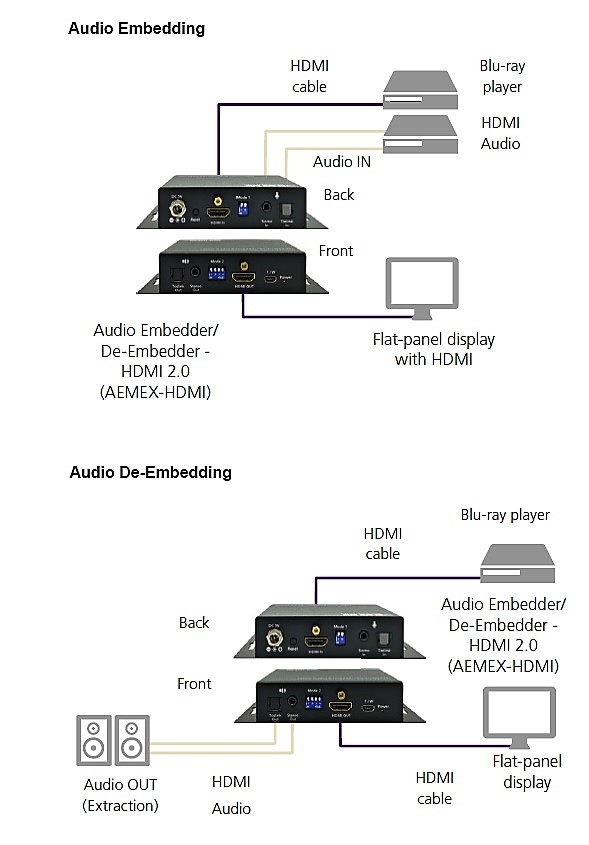

- Embeds audio from either a 3.5-mm or optical source to an HDMI or DVI-D signal.
- Create audio channels where there was not an existing one.
- De-embed audio from HDMI signal and output it to 3.5-mm analog or digital optical sound systems.
- Can de-embed audio without being connected to an HDMI display.
- Supports embedding and de-embedding at the same time.
- Controlled through simple DIP switch configuration.
BLACKBOX AEMEX-HDMI-R2 Audio Embedder & De-embedder - HDMI 2.0 Specifications
| Compliance |
|
| FCC |
|
| General |
|
| Altitude |
10,000 ft. (3125 m), maximum |
| Approvals |
CE, FCC, RoHS2, WEEE, UL |
| Audio Support |
Supports HDMI, 3.5-mm analog audio, TOSLINK optical audio inputs and outputs; Embeds audio from either 3.5-mm or optical source to an HDMI or DVI-D signal |
| CECC Channel |
Bypass |
| Connectors |
Input: (1) screw lock barrel power connector, (1) USB mini for power and firmware upgrades, (1) HDMI, (1) 3.5-mm analog audio, (1) TOSlinkdigital optical audio; Output: (1) HDMI, (1) 3.5-mm analog audio, (1) digital optical audio |
| Dimensions |
1.03"H x 3.74"W x 2.61"D (2.61 x 9.49 x 6.62 cm) |
| ESD Protection |
Human body model: ±19 kV (air-gap discharge) and 12 kV (contact discharge); Core chipset: ±2 kV |
| Humidity |
20 to 90%, non-condensing; |
| Material |
Enclosure: Metal |
| Operating Temperature |
32 to 104° F (0 to 40° C); |
| PCB Stackup |
4-layer board (impedance controldifferential 100 ohms, single 50 ohms) |
| Power |
Wallwart style; Input: 100-240 VAC, 50-60 Hz, 0.58 Amp; Output: 5-VDC, 4-Amp locking barrel plug |
| Resolution |
4K at 60 Hz 4:4:4 |
| Storage Temperature |
-4 to 104° F (-20 to 60° C); |
| User Controls |
(1) 2-position DIP switch, (1) 4-position DIP switch |
| Video Bandwidth |
Single-link 594 MHz (18 Gbps) |
| Video Support |
Up to 4K @ 60 Hz in 4:4:4 color |
| Weight |
0.57 lb. (0.26 kg) |
Product Includes:
Product includes:
- (1) Audio embedder/de-embedder
- (1) 5-Volt, 4-Amp power supply with adapter clips
- (2) Mounting screws
- User Manual
NOTE(s):
When de-embedding audio without using an HDMI output, the unit must be powered up without the HDMI out connected. If you power the unit with HDMI connected and then disconnect it, audio will drop.
