BLACKBOX AVS-HDB-TX  | BLACKBOX AVS-HDB-TX HDMI, IR, RS-232 to twisted pair transmitter, 4K, 3D, HDBaseT, 40m (4K)/70m (FHD) |  Εκτύπωση
Καλέστε μας Κατόπιν παραγγελίας |
|

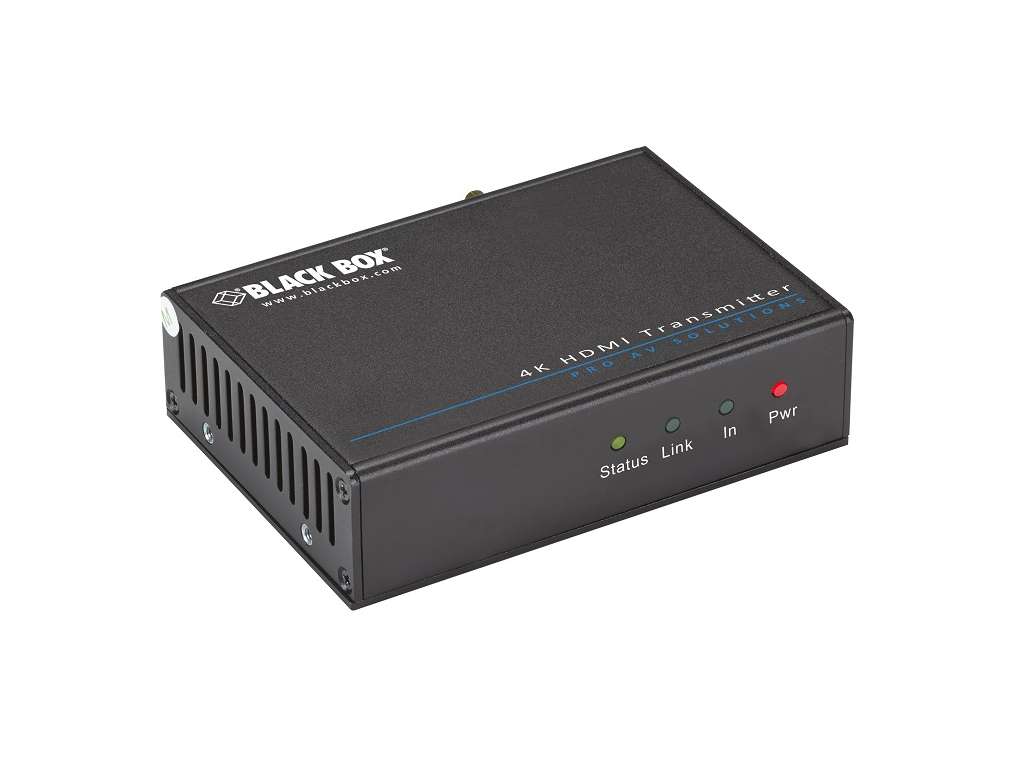

Περιγραφή BLACKBOX AVS-HDB-TXThe 4K, HDMI, IR, RS-232 Video Extender is an HDMI/IR/RS232 twisted pair extender consisting of a transmitter (AVS-HDB-TXT) and a receiver (AVS-HDB-TXR). The extender uses HDBaseT technology to transmit an HDMI signal over a maximum transmission distance up to 70 meters over CAT5e/CAT6 cable. CEC, bi-directional RS-232 and IR control and PoC are supported by the extender pair.
Signals that go the distance
The system enables the distribution of Full HD (1080p) video as far as 70 metres and 4K video up to 40 metres over each link.
Use existing cables and save costs
Since the video extender can extend video over CAT6/6a cable, there's no need to pull new cables and/or sacrifice video quality in the process. It's ideal for applications that require distance for high-quality video resolutions on HD and 3D displays.
Simple installation
The extender units only require powering in one end.
Additional features
- HDCP compliant and Blu-ray ready.
- Multiple features for EDID support.
- Remote powering only requires PSU in one end.
- Cooling and ventilation design.
- Locking power supply and HDMI.
The extender is compatible with the following products:
AVS800 or AVS1600 Modular Video Matrix Switchers when used with the AVS-4I-HDB 4K, HDBaseT, Analog Audio, and RS-232 Input Card
Multi-Format Video Scaler with Extension (AVSC-5DA1-HDB)
Package contents:
AVS-HDB-TX:
(1) 4K HDMI, IR, RS-232 Transmitter
(2) mounting brackets
(4) plastic cushions
(4) screws
(1) RS-232 cable
(1) 24-VDC power adapter
AVS-HDB-RX:
(1) 4K HDMI, IR, RS-232 Receiver
(2) mounting brackets
(4) plastic cushions
(4) screws
(1) RS-232 cable
(1) 24-VDC power adapter |
