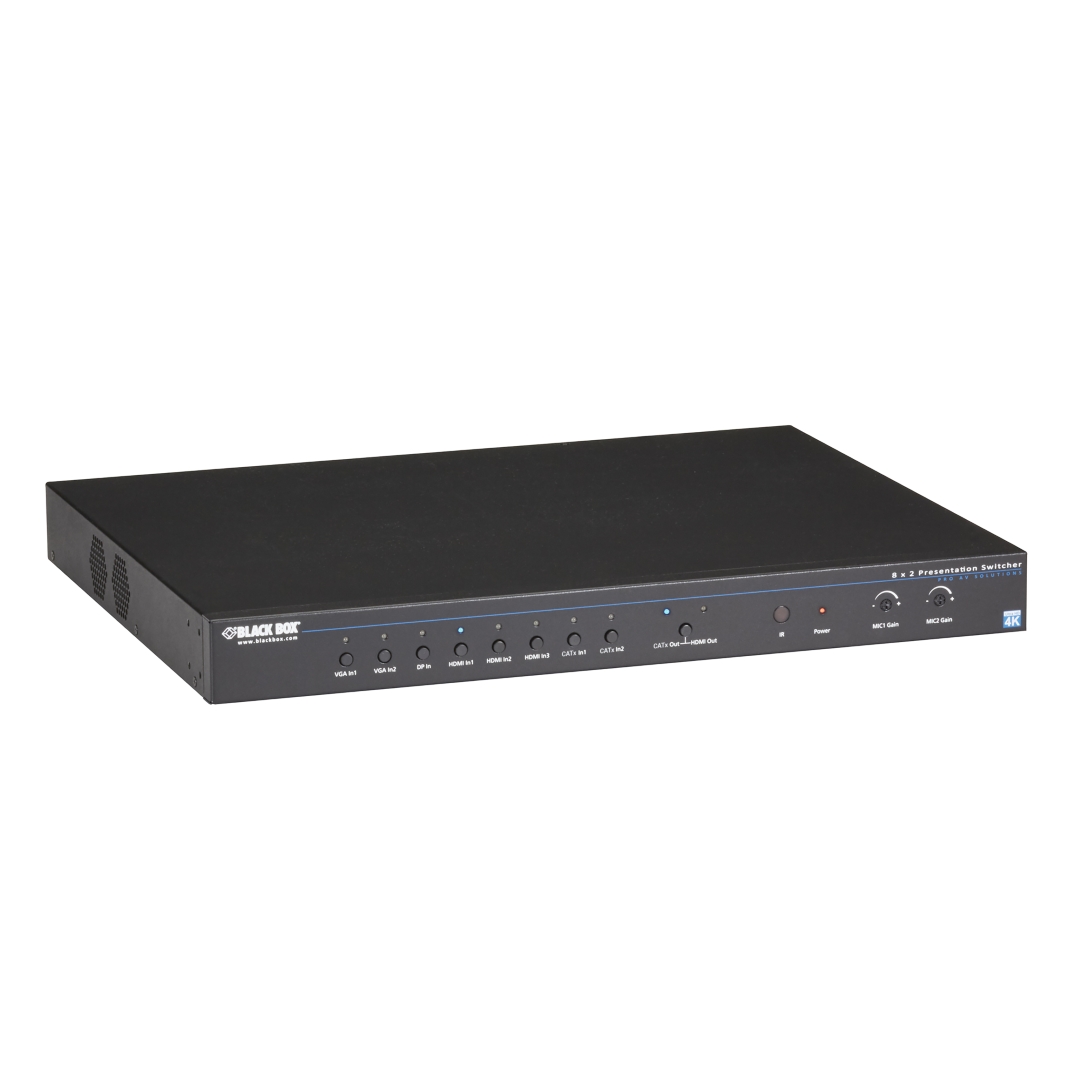

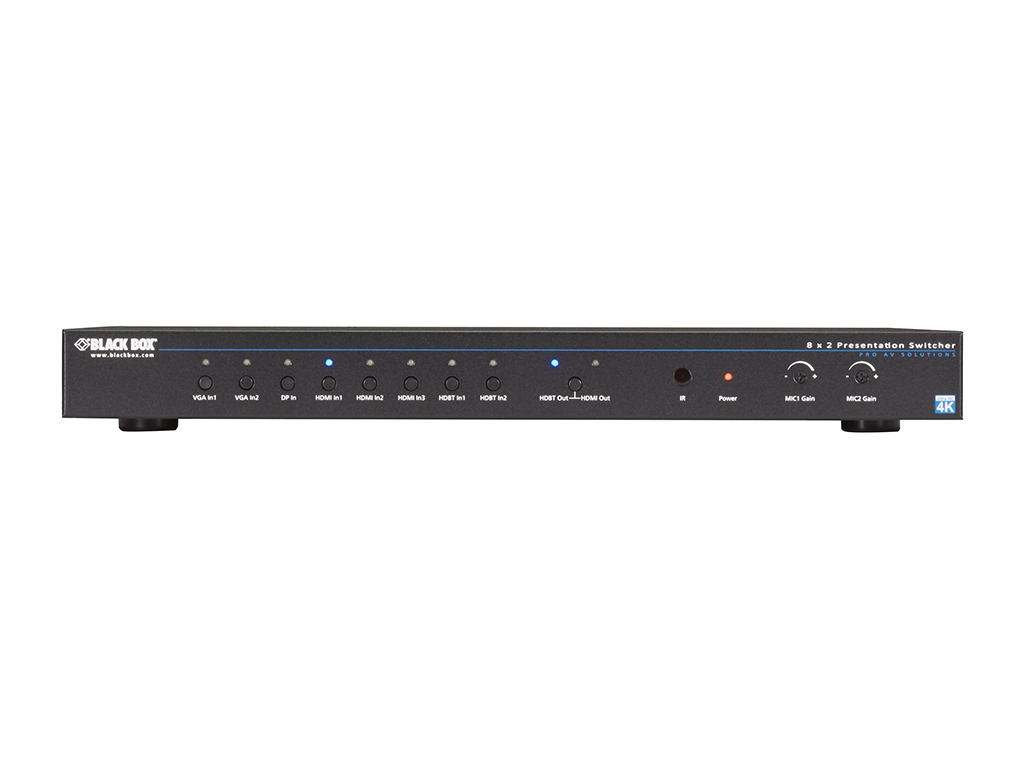

BLACKBOX AVSC-0802H  | BLACKBOX AVSC-0802H 8x2 Seamless Presentation Matrix Switcher/Scaler - 4K, HDMI, DisplayPort, VGA, HDBaseT |  Εκτύπωση
Καλέστε μας Κατόπιν παραγγελίας |
|
BLACKBOX AVSC-0802H Information
Presentation Switcher - 4K, HDMI, DisplayPort, VGA, HDBaseT, 8x2
CONNECT, EXTEND, AND SWITCH FROM 8 INPUTS TO 2 INDIVIDUAL CONFERENCE ROOM DISPLAYS.
- True matrix switching, route video from 8 inputs to 2 individual outputs.
- Supports all standard video formats including Display Port, HDMI, DVI (with adapters), and VGA.
- Up- or down-scale up to 4K (UHD) video to match display resolution for fast, seamless switching.
- Built-in HDBaseT extension up to 330 ft. for connection to remote sources or displays.
- USB support for remote keyboard and mouse (KVM) control. Multiple options for remote keyboard and mouse (KVM) control.
- Analog audio extraction to connect to separate audio amplifier or speaker system.
- Two microphones inputs with gain control and mixing.
- 48-Volt PoH line-powering for connected HDBaseT transmitters and receivers.
- EDID management via Web UI.
- Bi-directional IR, RS-232, Ethernet, USB, and power pass-through over HDBaseT input and output.
Simplify classroom and large conference room system integration. This is the only switcher your room needs.
BLACKBOX AVSC-0802H Specifications
| Environmental |
|
| Humidity |
10% to 90%, non-condensing |
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) |
| Compliance |
|
| FCC |
|
| Audio |
|
| Output |
1 x balanced stereo audio OUT (5-pin phoenix connector) |
| Control |
|
| Control Method |
RS-485, RS-232, LAN, Web UI, IR remote, front panel buttons |
| General |
|
| Approvals |
CE, FCC |
| Physical |
|
| Dimensions |
13"H x 17.3"W x 1.7"D (33 x 44 x 4.3 cm) |
| Rack Space Required |
1U |
| Weight |
10.4 lb (4.7 kg) |
| Power |
|
| Electrical Fast Transient/Burst |
Data communication cord: 1 kVPower cord : 2 kV |
| ESD Protection |
Human-body Model: ±8kV(Air-gap discharge)±4kV(Contact discharge) |
| Power Consumption |
73.5 Watts, maximum |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Surge Protection |
Voltage: ±1 kV (ten times respectively for the positive and negative voltage) |
| Video |
|
| Deep Color |
1080 p 36 bit4K:24 bit |
| Input |

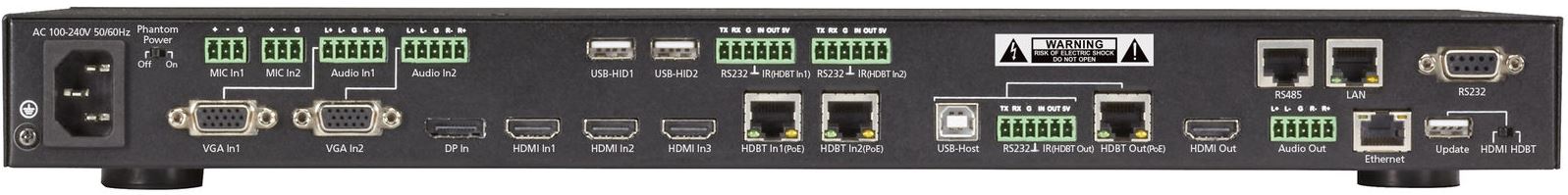

3 x HDMI IN2 x VGA IN1 x DisplayPort IN2 x HDBaseT IN |
| Input DDC Signal |
5V p-p |
| Input Resolution |
VESA:800 x 600@60Hz1024 x 768@60Hz1280 x 768@60Hz1280 x 800@60Hz1280 x 960@60Hz1280 x 1024@60Hz1360 x 768@60Hz1366 x 768@60Hz1440 x 900@60Hz1600 x 900@60Hz1600 x 1200@60Hz1680 x 1050@60Hz1920 x 1200@60HzHDTV:720 x 480@60Hz720 x 576@50Hz1280 x 720@50/60Hz1920 x 1080@50/60Hz3840 x 2160@30HzM |
| Input Signal Type |
HDMI 1.4, HDBaseT |
| Input Video Level |
0.5-1.2 V p-p |
| Maximum Pixel Clock |
297 MHz |
| Output |
1 x HDMI OUT1 x HDBaseT OUT |
| Output Resolution Support |
VESA:800 x 600@60Hz1024 x 768@60Hz1280 x 768@60Hz1280 x 800@60Hz1280 x 960@60Hz1280 x 1024@60Hz1360 x 768@60Hz1366 x 768@60Hz1440 x 900@60Hz1600 x 900@60Hz1600 x 1200@60Hz1680 x 1050@60Hz1920 x 1200@60HzHDTV:720 x 480@60Hz720 x 576@50Hz1280 x 720@50/60Hz1920 x 1080@50/60Hz3840 x 2160@30Hz |
| Output Signal Type |
HDMI 1.4, HDBaseT |
| Video Impedance |
100 Ω |
