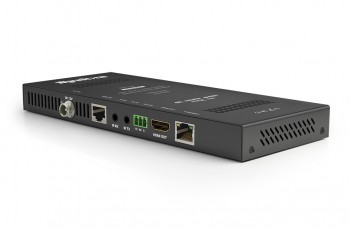

WYRESTORM RXV-70-4K

Consumer HDMI content is now breaking through the once comfortable HDBaseT “ceiling” of 10Gbps, with HFR (High Frame Rate) HDR here already in the form of Blu-ray, Satellite & Cable (HLG) and gaming content. WyreStorm’s H2XC matrix platform is ready for this, with this receiver being the perfect match for the TX-H2X-VLC modular card, using our new light-compression transmission solution.

HDMI2.0 VIDEO: MAXED OUT!

Always looking ahead, WyreStorm can handle both current & future video content technologies. The highest possible bandwidth that currently exists according to the HDMI 2.0 specification can still be sent using HDBaseT and the latest in lossless compression technology from the matrix to the RXV receiver.

The very core of WyreStorm transmission, we've embraced HDBaseT technology since 2010. We're now taking the capabilities of HDBaseT to the next level and supporting video bandwidths in excess of 10Gbps with our lossless compression technology built in to out H2X matrix platform. The RXV-70-4K will output HDMI content at up to 2160p 4:4:4/60.

POWER-OVER-HDBASET

With PoH available across all HDBaseT matrix outputs, the headache of hiding power supplies is one less thing to worry about. Power to drive the receiver is sent over the category cable along with the video, audio, control and Ethernet, making installations neat, quick and easy as possible.

SLIMLINE DESIGN

As space between displays and the wall they’re mounted to reduces, finding a receiver to fit in this gap can be hard to find. But just because this receiver packs a punch doesn't mean it can't deliver the small footprint that you've come to expect. It also ships complete with all the accessories needed to help the integrator complete the install discreetly and efficiently.

FEATURES

• Reliable HDBaseT-HDMI conversion over distance using single Cat6 cable
• 4K UHD signals up to 70m/230ft (2160p 4:4:4 60Hz 8-bit) and 2K signals up to 140m/459ft (1200p 60Hz 16-bit)
• Supports HDMI2.0 video standard up to 18Gbps
• Compatible with HDR standards including HDR-10, HDR-10+, HLG and Dolby Vision (Dolby Vision supported up to 30Hz)
• Class A HDBaseT™ supporting the transmission of video, multichannel audio, Ethernet, bidirectional control and PoH
• Powered remotely via PoH from H2XC matrix
• HDCP 2.2 compatible
• Bidirectional IR supported with both IR TX & RX ports
• RS-232 port for routed 2-way serial communication
• Supports Ethernet pass-through from matrix (Class A HDBaseT transmission only)
• LED indication for HDCP presence within signal and transmission link between devices
• Ventilated steel chassis
• Conforms to IEEE-568B standards
• Compact design for convenient and unobtrusive installation
• Wall mounting brackets and IR accessories included
